Delete Device

Use the Delete Device option to remove devices from the AV network configuration.

Deleting a Device

1. In the IP Link® Tree window, select the device that you want to delete.

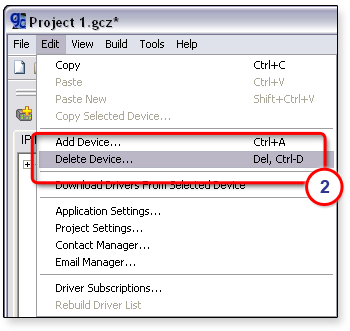

2. From the Edit menu, select Delete Device.

- or -

Press <Ctrl + D> on your keyboard.

- or -

Click the Delete Device icon on the toolbar.

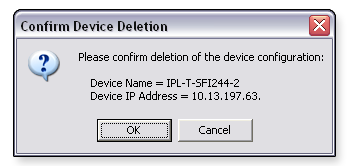

The Confirm Device Deletion dialog box opens.

3. In the dialog box, click OK.  The selected device is removed from the IP Link Tree window.
