Paste New

Use the Copy and Paste New options to add a new identical device with identical settings in the IP Link® Tree window.  Global Configurator assigns the next sequentially available IP address to the new device.

Copy and Paste New

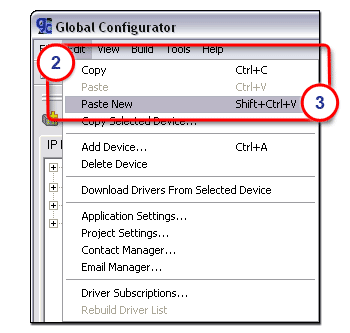

To copy and paste new:

  1. In the IP Link Tree window, select a device.

  1. From the Edit menu, select Copy.

  2. From the Edit menu, select Paste New.

 - or -

Click the Paste New icon on the toolbar.

A new identical device is added in the IP Link Tree window.  The new device has identical settings as the copied device and is assigned the next sequentially available IP address.

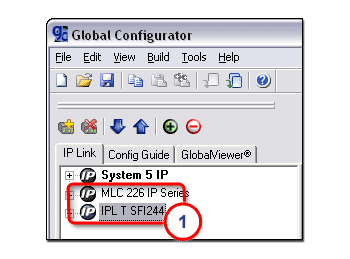

Dragging and Dropping to Copy and Paste a Device

Another method to copy a device and add an identical device is:

  1. In the IP Link Tree window, select a device.

  2. While holding the left mouse button down, move off of the device into an open area of the IP Link Tree window.

  3. Release the left mouse button.  A new identical device is added in the IP Link Tree window.  The new device has identical settings as the original device and is assigned the next sequentially available IP address.
