Embedded Web Pages

Each Extron IP Link® product has an onboard Web server with embedded (default) web pages.  The embedded web pages were used prior to the availability of the Global Configurator application and can still be used to configure and manage the device.

Embedded web pages are:

• Status Page

• Configuration Page

• File Management Page

• Control Page

There are three ways to launch the embedded Web pages:

• Global Configurator Context Menu > Open System Status Web Page

• Internet Browser (Prior to a GC File Upload)

• Internet Browser (After a GC File Upload)

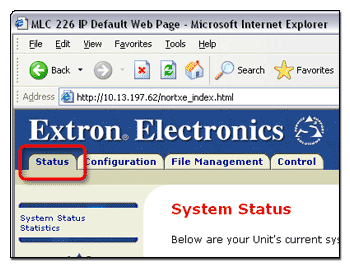

Status Page

Use the Status page to view:

• System description

• IP settings

• RS-232 port settings

• IR and serial port settings

• Statistics

• Total On time

• Average On time per day

• Average On time per week

• Button statistics

• Lamp hours

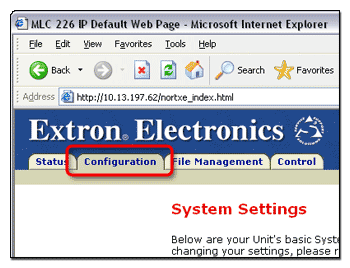

Configuration Page

Use the Configuration page to:

• Change the IP settings

• Change the date and time settings

• Change the Executive mode

• Set passwords

• Set up e-mail alerts

• Perform a firmware upgrade

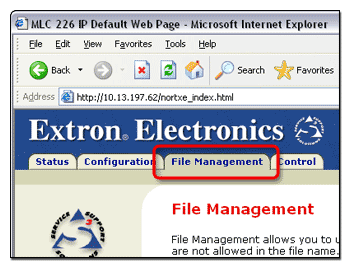

File Management Page

Use the File Management page to:

• Create directories within the onboard web server.

• Upload files to the onboard web server.

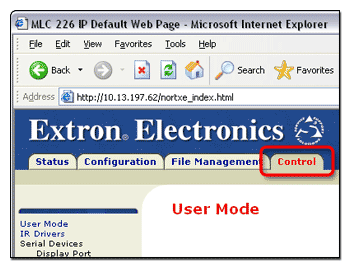

Control Page

The Control page provides a graphical user interface of the front panel controls (buttons and knobs) on the IP Link® device.

From here, you can control the device just as you can from the physical front panel or the GlobalViewer® interface.

You can also view IR or serial device drivers and view or execute individual device driver commands.

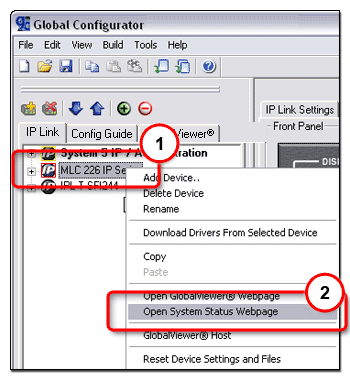

Global Configurator Context Menu > Open System Status Webpage

To launch the embedded web pages from Global Configurator:

1. In the IP Link Tree window, select and right-click the desired device.

2. Select Open System Status Webpage from the drop-down list.  The embedded (default) web page of the selected device opens in a new Internet browser window.

Internet Browser (Prior to a GC File Upload)

To launch the embedded web pages of a device from an Internet browser if:

•  The device is connected to your network

- and -

• A GC file has not yet been uploaded to the  device:

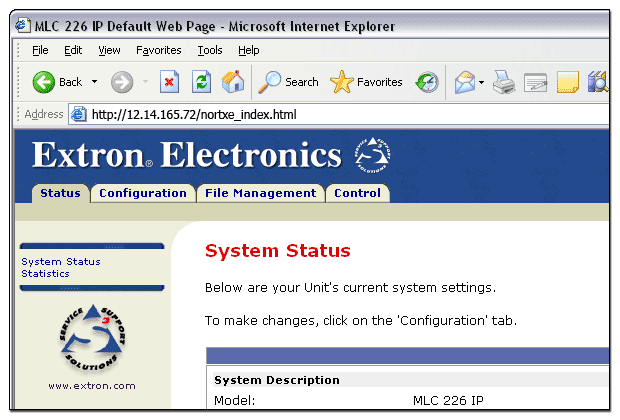

1. In the Address field of the browser, enter http://<IPaddress> where <IPaddress> refers to the IP address of the device.

2. Press the <Enter> key on your keyboard.

Internet Browser (After a GC File Upload)

After a Global Configurator file has been uploaded to a device it no longer launches the embedded web pages in an Internet browser by entering the IP address of the device.  You must enter the entire path to access the embedded web pages.

If a GC file has been uploaded to a device that is a GlobalViewer host device and you only enter the IP address of the device in an Internet browser, the GlobalViewer web page launches.

If a GC file has been uploaded to a device that is not  a GlobalViewer host device and you enter the IP address of the device in an Internet browser, a page with the following message is displayed:

You have accessed a system configured for centralized management.  Please contact your local support administrator for information required to access this system.

To launch the embedded web pages of a device from an Internet browser if:

• The device is connected to your network

- and -

• A GC file has been uploaded to the device:

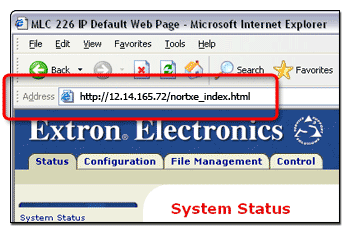

1. In the Address field of the browser, enter http://<IPaddress>/nortxe_index.html where <IPaddress> refers to the IP address of the device.

2. Press the <Enter> key on your keyboard.
