Print Options

Use the Wiring Diagrams print option to generate a printout that provides details about the selected device, including a diagram of its connection ports.

Use the IP Link® device(s) worksheet print option to generate a Microsoft® Excel® worksheet that contains configuration information for each device on your AV network.

Wiring Diagrams

Select the Wiring Diagrams print option to generate a printout that provides details about the selected device, including a diagram of its connection ports.

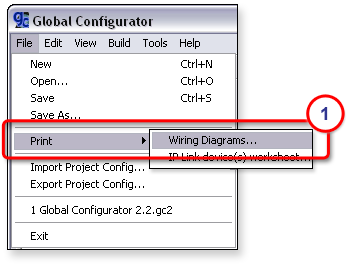

  1. From the File menu, locate the Print submenu and Wiring Diagrams.  The Print Wiring Diagrams dialog box opens.

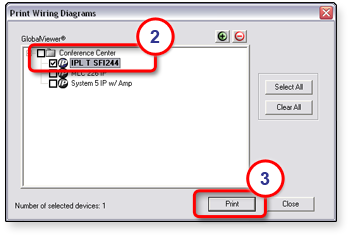

  1. Select a device or multiple devices.

  2. Click the Print button.  This generates a Microsoft Word file.

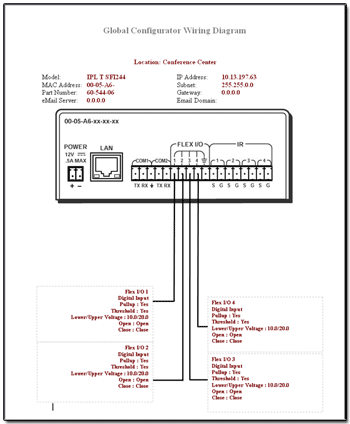

The file displays the following device information:

  • Model

  • MAC address

  • Part Number

  • E-mail Server

  • IP address

  • Subnet

  • Gateway

  • E-mail Domain

  • A connection diagram

  1. Print or save the file as needed.

IP Link Device(s) Worksheet

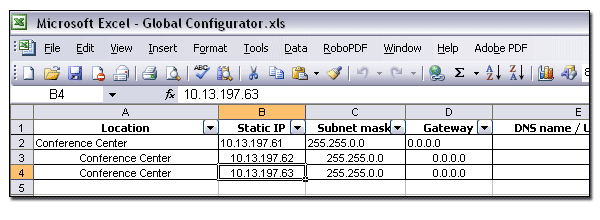

Use this option to generate a Microsoft Excel worksheet (example shown below) that contains the following information for each device on your AV network:

  • Location

  • Static IP

  • Subnet mask

  • Gateway

  • DNS name / Unit name

  • MAC address

  • Firmware

  • Unit Type

  • Install Date

  • Notes

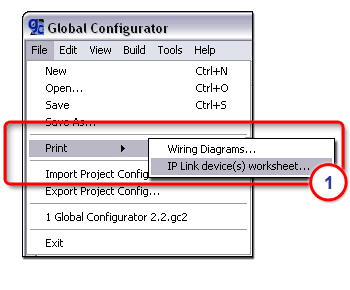

  1. From the File menu, locate the Print submenu and select IP Link device(s) worksheet.  The Print Work Sheet dialog box opens.

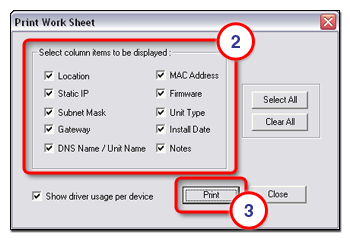

  2. Select the desired column items to display in the worksheet.

  3. Click the Print button.

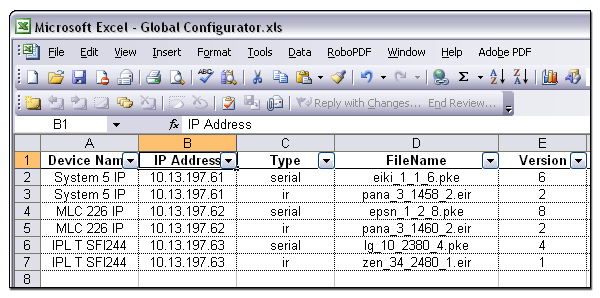

The IP Link worksheet also includes a second page titled Driver Info that prints a list of all device drivers currently in use in the Global Configurator project file.

To view the listing, click the Driver Info tab at the bottom of the worksheet.
