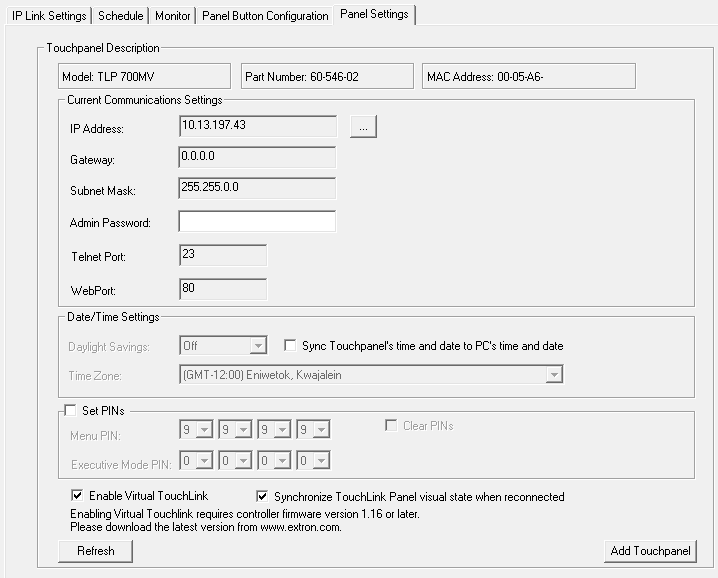

Panel Settings Tab

The Panel Settings tab displays a description of an assigned TouchLink™ touchpanel as well as the communication and date and time settings for the panel.  On this tab, you can add a touchpanel and update the associated settings.

The IP Address field is populated during the Add Device process.  If the IP address of the device changes, the new IP address must be entered here so that Global Configurator can communicate with the device via its new IP address.

If the device has been assigned passwords, those passwords must also be entered on this screen so that GC can connect to the device.  A device must have an administrator password if it has a user password.

Note:  The IP Address, Admin Password, and User Password fields must match the current communications settings of the device in order for GC to connect to it..

The Enable Virtual TouchLink check box allows the user  to enable a touchpanel emulation on a wifi capable device such as an iPad. After configuration the emulation device can be used to control an AV device wirelessly.

Note:  This option may require you to update the controller firmware version. This can be downloaded from www.extron.com.

The Synchronize TouchLink Panel visual state when reconnected check box allows the user to enable a TouchPanel to be synchronized  with the system when reconnected. For example, if a controller  becomes disconnected for a period, and is then reconnected, any  panels connected to that controller are updated with   any changes that may have occurred to other panels within the system during the disconnection period.

The Refresh button refreshes the entire screen with information populated by the device.

The Add Touch Panel button opens a separate dialog box, allowing the user to add a new touch panel.


Adding a Touchpanel

To add a touchpanel:

  1. In the IP Link® Tree window, select a touchpanel port.

  2. Select the Panel Settings tab.

  3. Click Add Touch Panel.  The Add Touch Panel screen opens.

  4. From the Model drop-down list, select the model of the touchpanel.

  5. In the Name/IP Address field, enter the IP address of the TouchLink touchpanel.

  6. In the Display Name field, enter a display name for the touchpanel.

  7. If the Basic button is selected so that it reads "Advanced," more settings appear.  Enter the applicable information such as the Telnet port, admininstrator password, and user password.  You can also select the Auto Configure IP Address check box so that the IP address of the touchpanel will be configured automatically based on the entered MAC address.  If you auto-configure the IP address, be sure to click Set after entering the MAC address.  Auto-configuring the IP address is optional.

  8. Select the Import/Apply Layout check box.  This is optional.

  9. Select the Enable Virtual TouchLink check box.  This is optional.

Note:  For best results TouchLink layout should not have any local actions from GUIC.

Note:  This option can also be turned on by checking the Enable Virtual TouchLink check box  on the Panel Settings tab before clicking the  Add Touch Panel button. The check box is located  above the refresh button.

  1. Select the Synchronize TouchLink Panel visual state when reconnected check box.  This is optional.

 Note:  This option can also be turned on by checking the Synchronize TouchLink Panels when Reconnected check box  on the Panel Settings tab before clicking the  Add Touch Panel button.

  1. Click OK.  This updates the information on the Panel Settings tab.  You can now add a layout and configure it on the Panel Button Configuration tab.

You can also use the Panel Button Configuration tab to add a touchpanel to the port:

Note:  This option is available if no touchpanel is currently associated with the port.  To change the touchpanel associated with the port, follow the steps in the Updating touchpanel settings subsection, below.

  1. Select the Panel Button Configuration tab.

  2. In the Layout Preview section, select Click here to add one.  The Add Touch Panel screen opens.

  3. Follow steps 5 through 9 of the above procedure.

Updating Touchpanel Settings

To update the settings of a touchpanel:

  1. In the IP Link Tree window, select a touchpanel port.

  2. Select the Panel Settings tab.

  3. Click the button.  The Enter IP Parameters screen opens.

  4. Update the Connection Type, IP Address, and Telnet port fields as needed.

  5. Click OK.  This returns you to the Panel Settings tab.

  6. Enter an administrator password and user password if applicable.
