Receptacle Cfg Tab

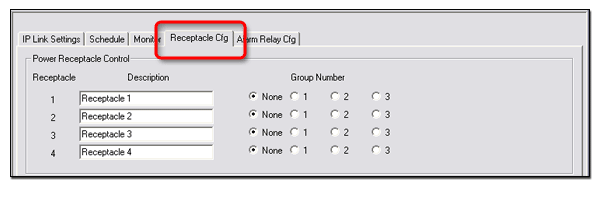

The Receptacle Cfg tab is available when an IPL T PCS4/4i is selected in the IP Link® Tree window.

This tab is used to group receptacles together.  When grouped together, receptacles can be switched on and off with the same pushbutton switch.

For example, if Receptacles 1 and 2 are both placed in Group 1, they will both respond to power on or off commands from either pushbutton switch 1 or 2 on the front panel.

To group receptacles:

For each receptacle in the Power Receptacle Control section, click the radio button of the desired group number.  Available options include:

• None

• 1

• 2

• 3

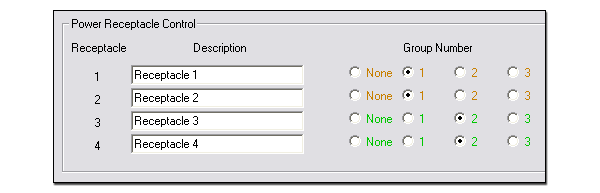

In the example below, Receptacles 1 and 2 are placed in Group 1 and Receptacles 3 and 4 are placed in
Group 2.
