Set Web Help Link

The Set Web Help Link option lets you add a Help button at the top of your GlobalViewer® page and assign to it a link to any web page.

To set a web help link:

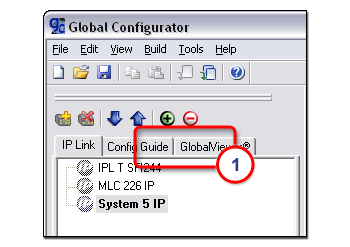

  1. In the IP Link® Tree window, click the GlobalViewer®.

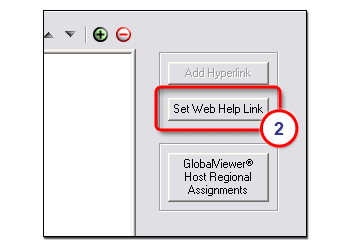

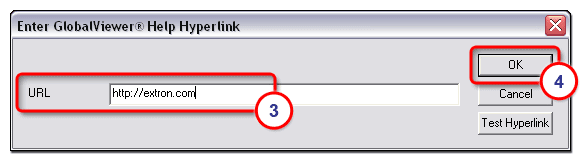

  1. Click the Set Web Help Link button.  The Enter GlobalViewer Help Hyperlink dialog box opens (see below).

  2. In the URL field, enter the desired website URL (such as http://extron.com).

  3. Click OK.

  4. Build the changed configuration (see the Build Changed Configurations section).

To view and test the new Help link in the GlobalViewer page:

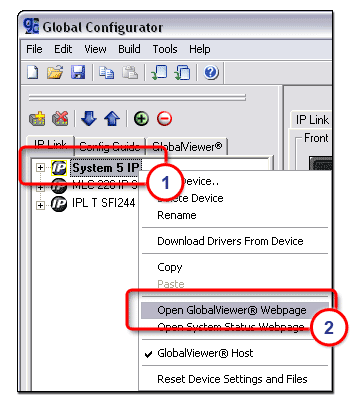

  1. In the IP Link Tree window, select a GlobalViewer host device.

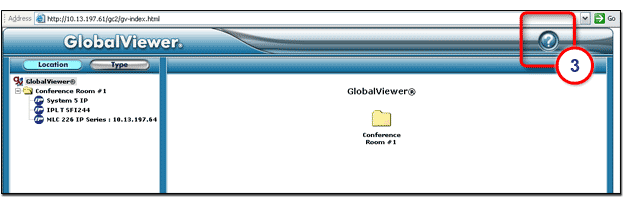

  2. Right-click the host device name and click Open GlobalViewer®  Webpage.  The GlobalViewer Web page opens (see below).

  3. Click the Help icon to launch the web page that you identified as your Help page.
