Change Device Settings

Use the Change Device Settings option to open the Device Settings screen and display the following information for each device: location, model, GV host, IP address, name, subnet mask, gateway, mail server, mail domain, Telnet port, web port, admin password, user password, daylight savings, and time zone.  The Device Settings screen scrolls horizontally to display all of the information.

Changing Device Settings

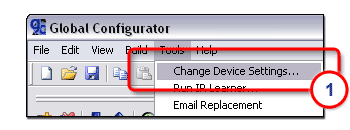

  1. From the Tools menu, select Change Device Settings.  The Device Settings screen opens.

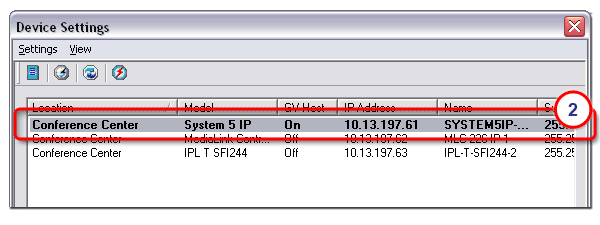

  2. Select the desired device.

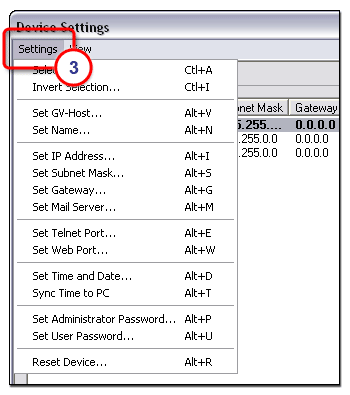

  1. Use the options on the Settings menu to make any desired configuration changes to the selected device.

Device Settings Toolbar

Note:  Each of these options is also available in the Settings drop-down list.

Device Settings toolbar icons (4) include:

Set the GV-host on or off.

Set the time and date.

Synchronize the time on the IP Link® device with the time on the PC.

Reset device.
