Project Settings

Use the Project Settings screen to set all of the default values for the fields of the Add Device screen (see the Add Device section).  For example, If you enter a default administrator password in the Project Settings screen, it appears in the Admin Password field of the Add Device screen.  If you leave the Default Admin Password field blank in the Project Settings screen, the Admin Password field is also blank when you open the Add Device screen.

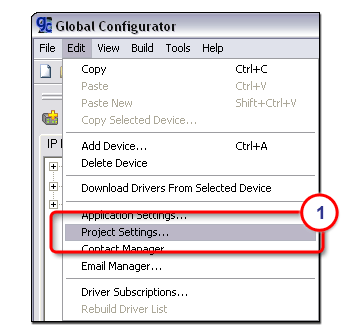

To open the Project Settings screen:

1. From the Edit menu, select Project Settings.

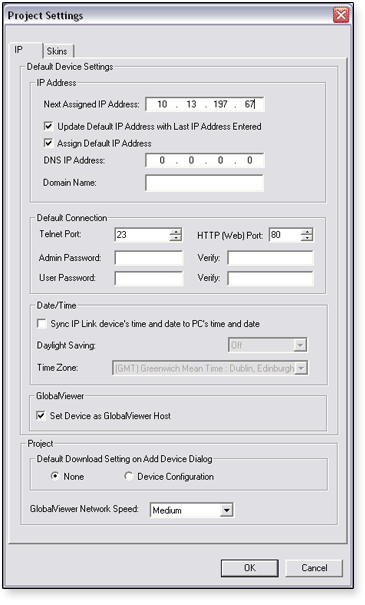

The Project Settings screen opens with the following options on the IP tab:

Next Assigned IP Address

Update Default IP Address with Last IP Address Entered

Assign Default IP Address

DNS IP Address

Domain Name

Default Connection Telnet Port

Default Connection Web Port

Default Admin Password

Default User Password

Date/Time Settings

GlobalViewer® host

Default Download Setting on Add Device Dialog

GlobalViewer® Network Speed

Click on a link above or click on a section in the image at right for more information.

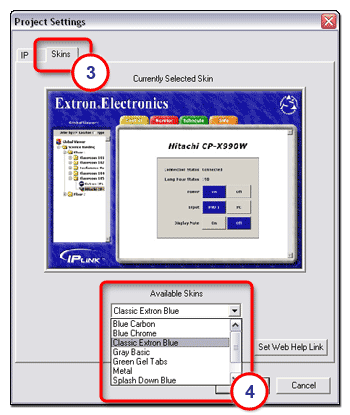

Use the Skins tab (3) and Available Skins drop-down list (4) to select the look and feel of the GlobalViewer interface.

Skins options include:

• Blue Chrome

• Blue Carbon

• Classic Extron Blue (shown at right)

• Gray Basic

• Green Gel Tabs

• Metal

• Splash Down Blue

• Steel Gauges

• Wood Finish
